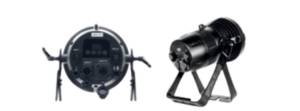

PYXIS PAR

Download Poster
  • Light Source ; 150W (RGBLAC)
  • Angle ; 16°
  • IP Rated ; IP65

DESCRIPTION :

PYXIS PAR is an innovative 6 in 1 LED static Wash Light with Classic One Big Homogeneous Lens Optic, Excellent Colour Mixing, HSIC System makes Colour Mixing Simple and Easy.
Precise pre-set CCT 1800-8000K, high CRI >90. It is an ideal dream tool for TV, Theatre, Opera, Studio, Exhibition, Motor Show, Multi-functional Hall and so on.

Optical System

  • Light Source : 150W (RGBLAC)
  • CCT : 1800K-8000K
  • CRI ≥ 93Ra
  • CQS : >90
  • Angle : 16° ( 25°optional )

Electrical Specs

  • Voltage : AC100-240V , 50/60Hz
  • Max.Power : 143W
  • Drive Current :1A
  • Power Connection : Power in/out
  • DMX XLR : DMX in/out

Appearance

  • Size : 320x217x418mm
  • Weight : 6.5Kg
  • Casing : Die-Cast
  • Aluminum
  • Color : Black

Work Enviroment

  • Ambient Temp : 20C-45
  • IP Rated : IP65

Control System

  • Dimmer : 0-100% 16Bit
  • Cooling : Forced Convection
  • Control : DMX512, RDM
  • Display : On Board Control , Custom Mode,0-25Hz Strobe
  • Con Personality : Basic (3Chs), CLR (6CHS).SSP(9CHS),
    TOUR (13CHS),TR16(20CHS), HSIC (7CHS)

Certification

  • CE, MET
